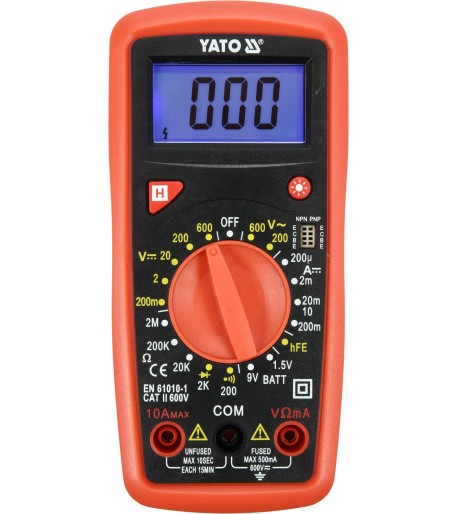

Skaitmeninis daugiafunkcinis testeris 0-600 V

The digital meter is particularly useful in diagnosing and detecting defective components of electrical installations.

It allows measuring:

alternating voltage: U a.c. 200 V, 600 V
DC voltage: U d.c. 200 mV, 2 V, 20 V, 200 V, 600 V
battery test: 1.5 V, 9 V
direct current: I d.c. 200 μA, 2 mA, 20 mA, 200 mA, 10 A
resistance: R 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ
diode test: IF 1 mA, UR 1.5 V
transistor test: hFE PNP, NPN
the audible signal allows easy verification of the continuity of the circuit.
The YATOL YT-73081 multimeter possesses an LCD display that allows displaying the maximum result of 1999. In contrast, its unique advantage is the possibility of backlighting in blue, which makes it much easier to read the measured parameters in dark rooms. In addition, the DATA HOLD function allows you to keep the currently measured value on the display.

The meter is powered by two 1.5V batteries (AAA). Thanks to the AUTO-POWER OFF function, the device will automatically switch off after 15 minutes of inactivity, which saves battery life and extends its life.

The device has overload protection and a low battery indicator.

Aesthetically made rubber housing primarily protects it against mechanical damage, and at the same time increases the comfort of use. In addition, there is a pull-out support at the back that allows you to position it in a position that makes reading data easier.

The set includes test leads.

Technical data
Index number YT-73081
EAN 5906083042577
Brand Yato
Measurement of hFe PNP transistor, NPN
Measurement of alternating voltage 0-600V
DC voltage measurement 0-600V
Resistance measurement 0-2M OHM
Constant current 0-10A
Circuit continuity test YES
Diode test YES
